Synth Interface Theorist

if bloom touch

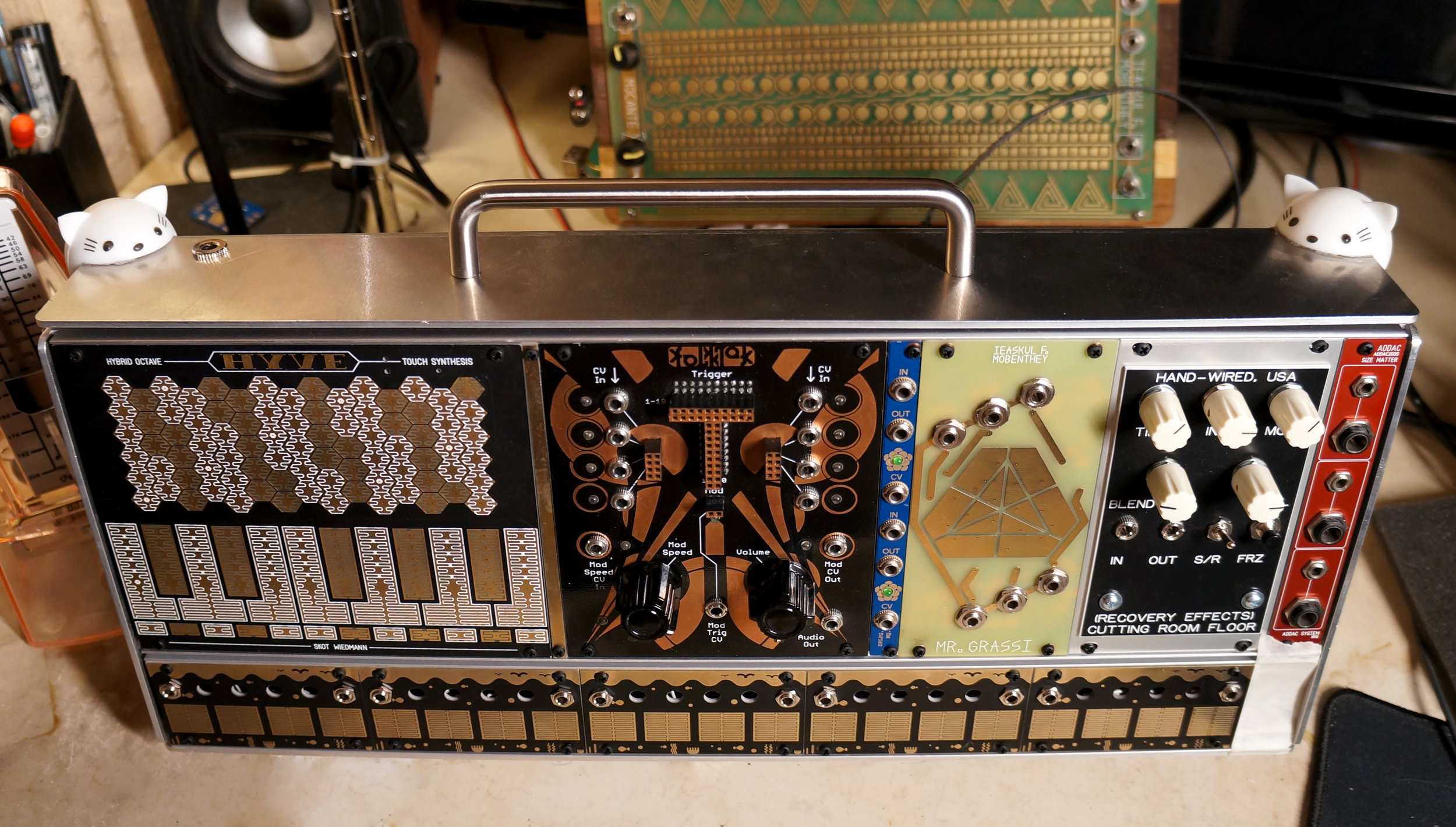

a self-contained eurorack system

instant and tactile like an acoustic instrument

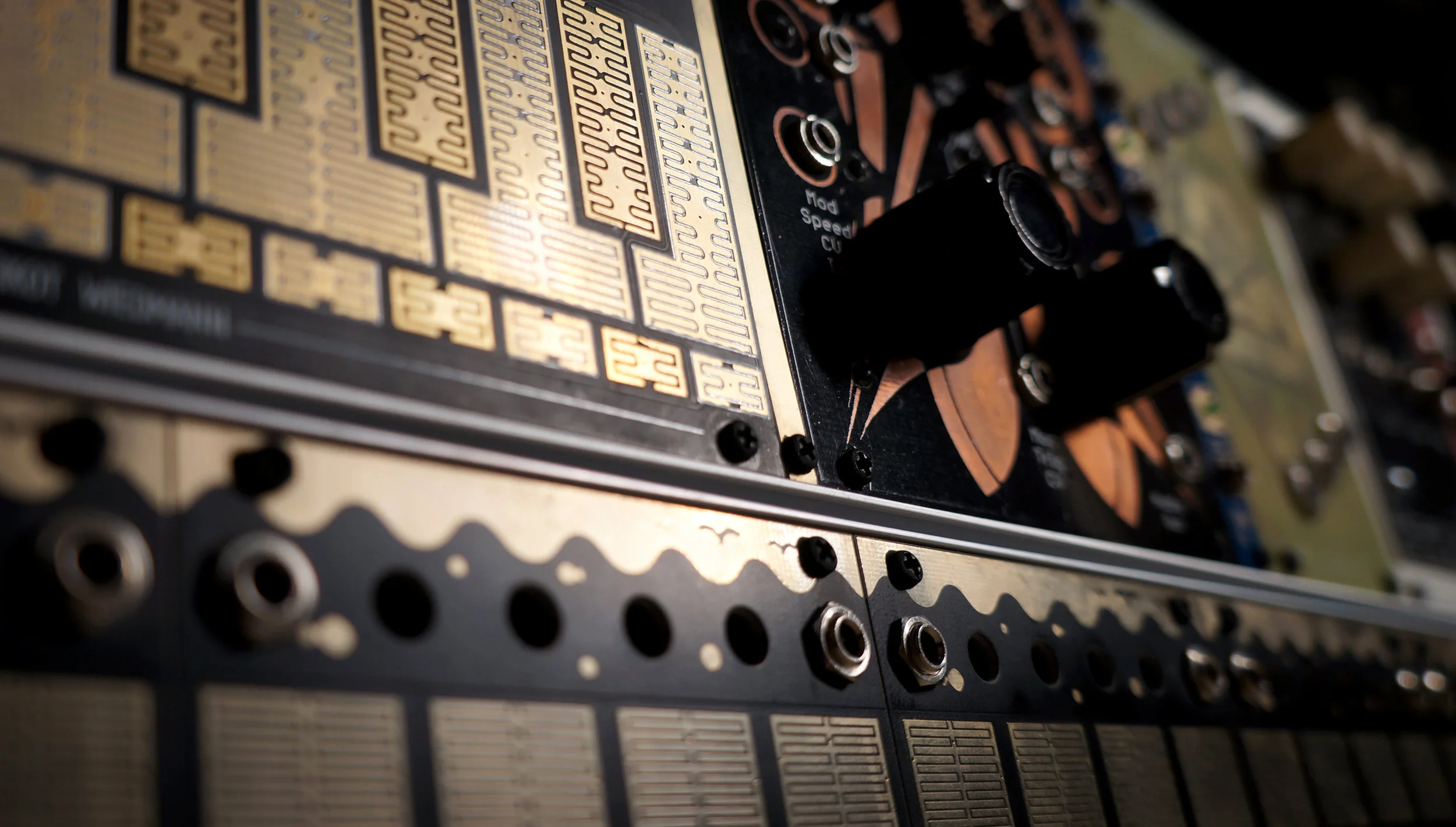

1) hardwired connections between Folktek Matter and Meng Qi Seashore;

2) tonal / atonal audio from Skot Wiedmann HYVE / IFM Mr.Grassi, travels thru body into various points within Matter;

3) left/rightmost inputs on Seashores are equipped with jacks, thus touch-controlled external signal injection / feedback are convenient;

4) Meng Qi DPLPG provides smooth vactrol based voltage control of volume and tone;

5) Recovery Effect Cutting Room Floor offers pitch shifting looping / delay / faux reverb, and is sensitive to incoming volume;

6) bottom jacks on ADDAC Size Matter is connected to a D-Class amplifier, a hefty built-in surface transducer provides strong sound and vibrations to feel with body.

it went through a few revisions.

I hope it stays in the fine line between redundancy and scarcity, like a well designed standalone instrument.
